Cold Spray Additive Manufacturing (CSAM)
Intro blurb lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Recent Efforts
- Gas Gun Experiments Reveal Thermal Response of Polymeric Materials
- Multi-physics Informs Cold Spray Research with Material Property Identification
- Cold Spray on to Advanced Composite Substrates
Unified Workflow for Informing Cold Spray Research

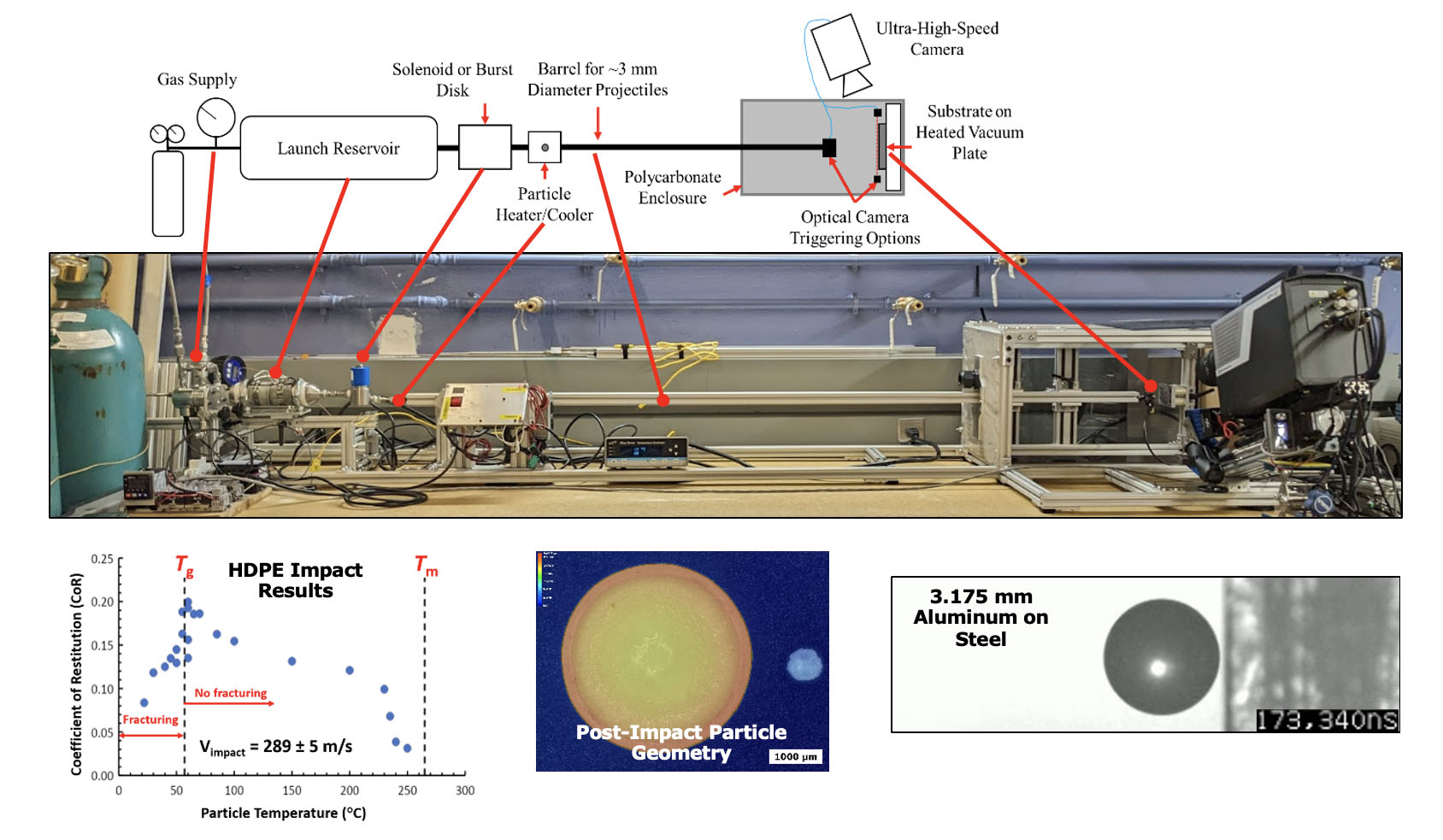

Gas Gun Experiments
Single Stage Light Gas Gun Overview
- Particle diameter from 3.175 mm to ~100 µm (with sabot)
- Up to 1000 m/s with helium
- -168 ºC to ~600 ºC particle temperature
Sabot Launching System
Gas Gun Experiments Reveal Thermal Response of Polymeric Materials

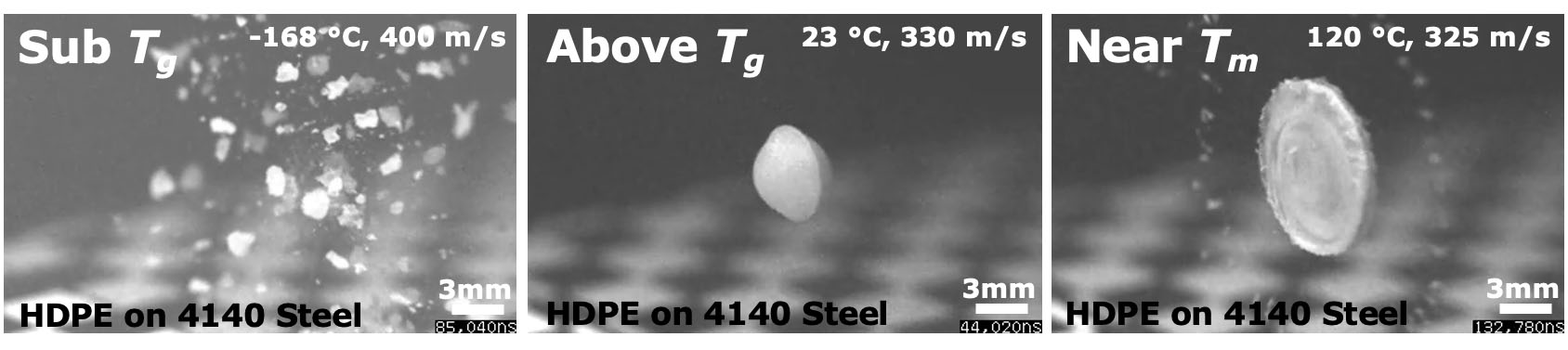

Features of deformation are visible at macro scales

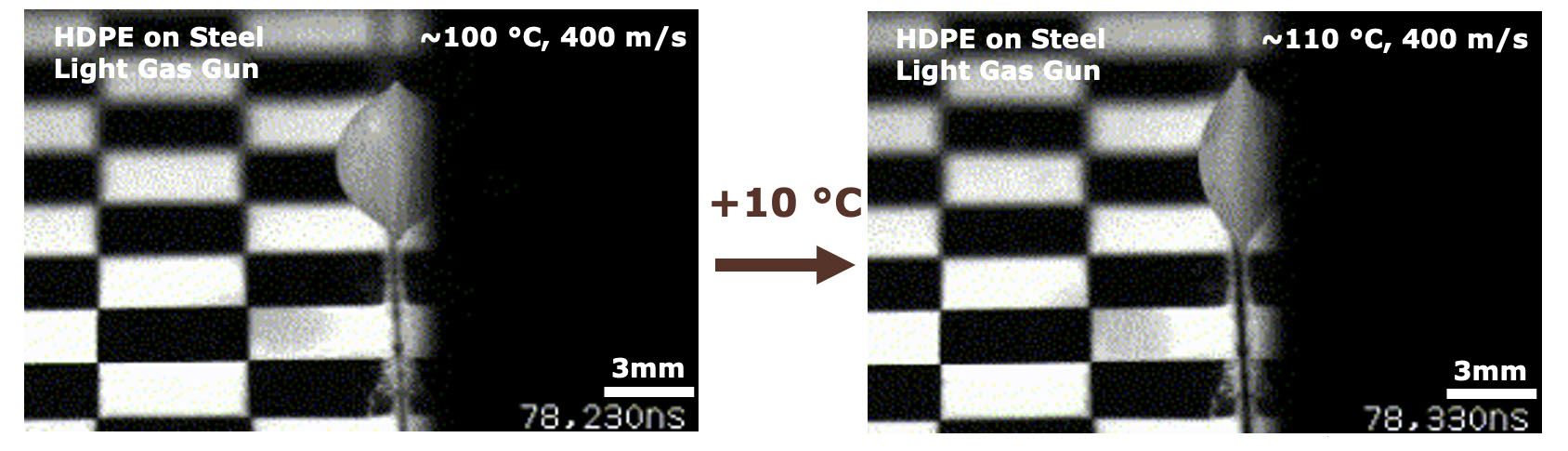

Deformation history informs the effect of process parameters

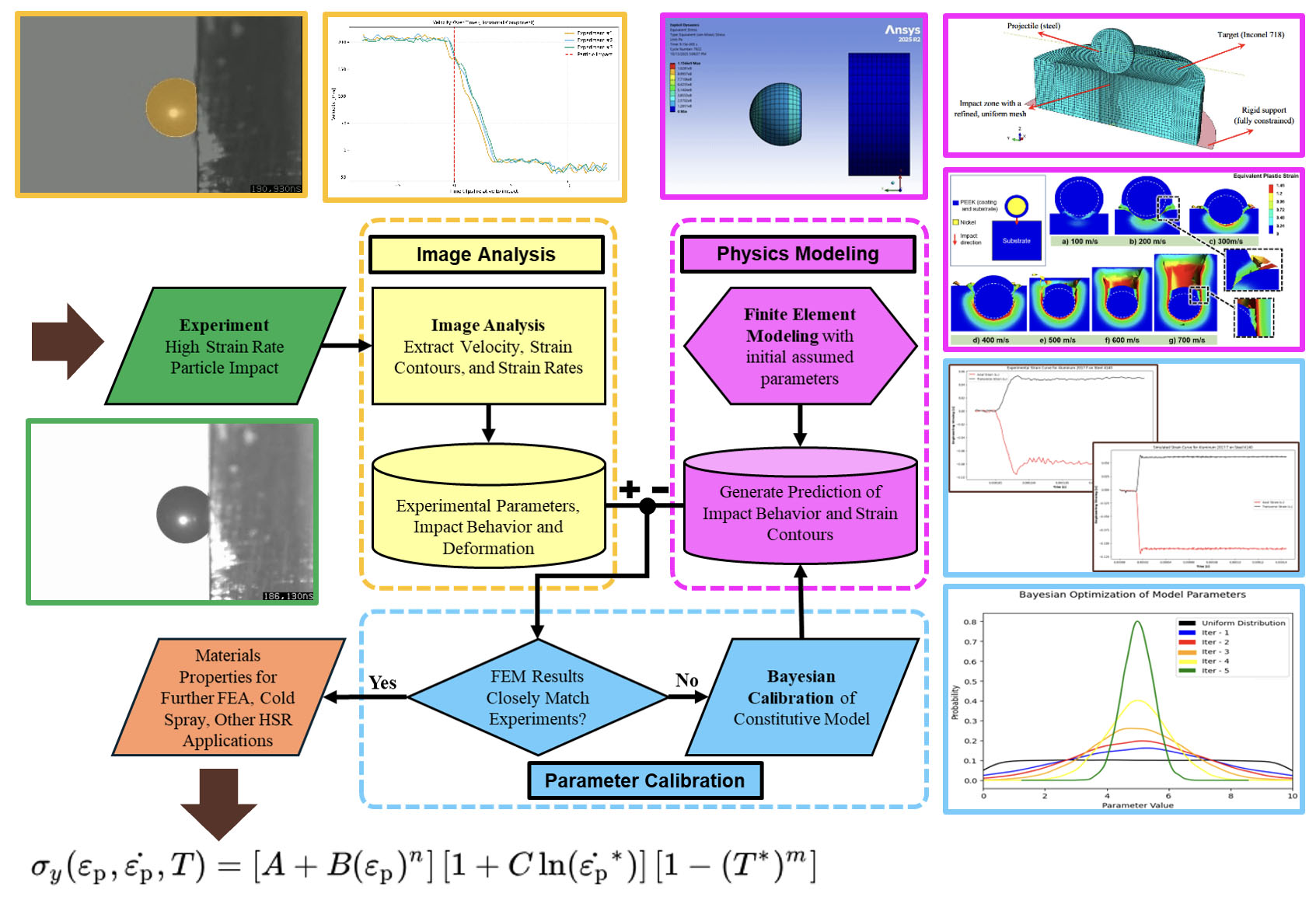

Experiment-Integrated Multiphysics-Informed Materials Property Discovery
Benchtop Cold Spray Experiments
- Up to 120 psi (~8 bar) Nitrogen / Helium
- 500 ºC with 12 kW heater power
- Materials: Polymers, Metals, Composites
- Used to validate low pressure parameters
Low Pressure – Custom/Adapted Benchtop Cold Spray Systems

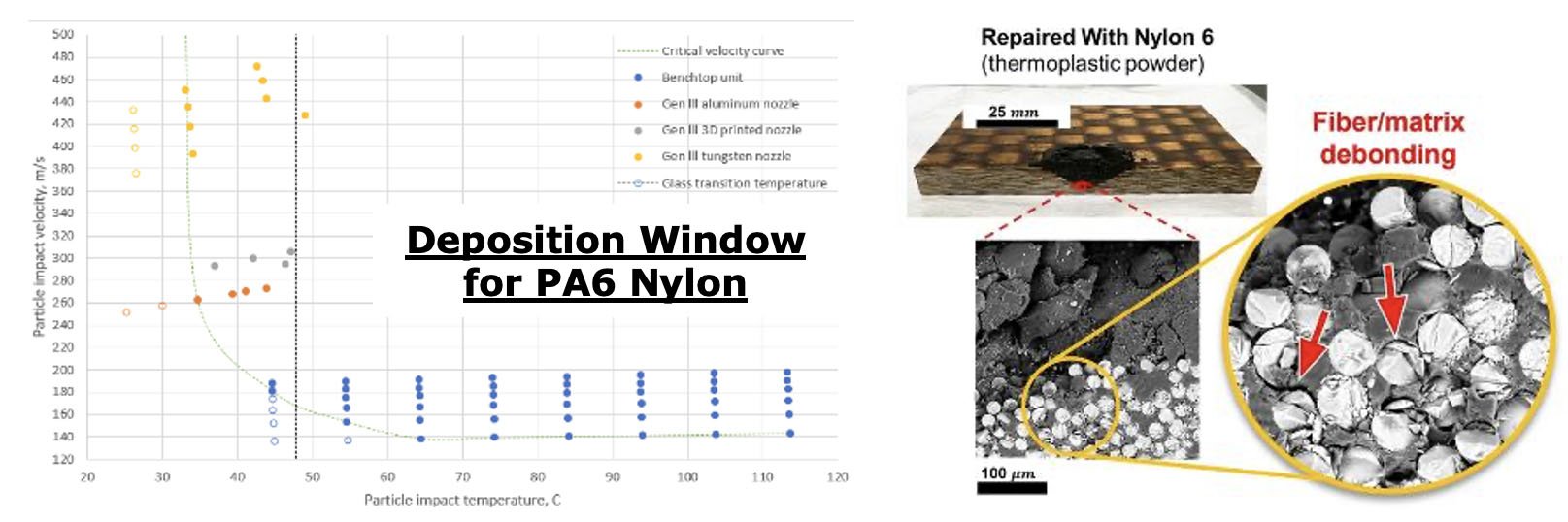

Cold Spray of/on to Advanced Composite Substrates

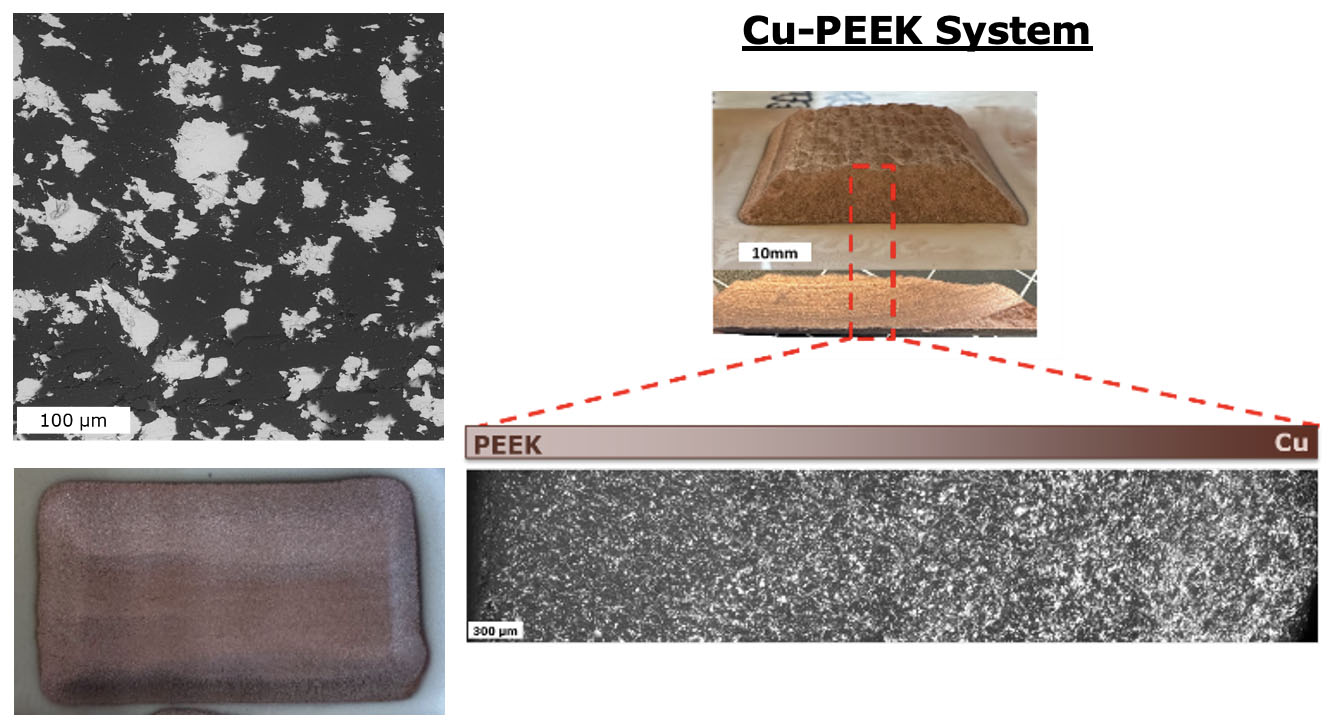

Polymer Metallization/Graded Deposits

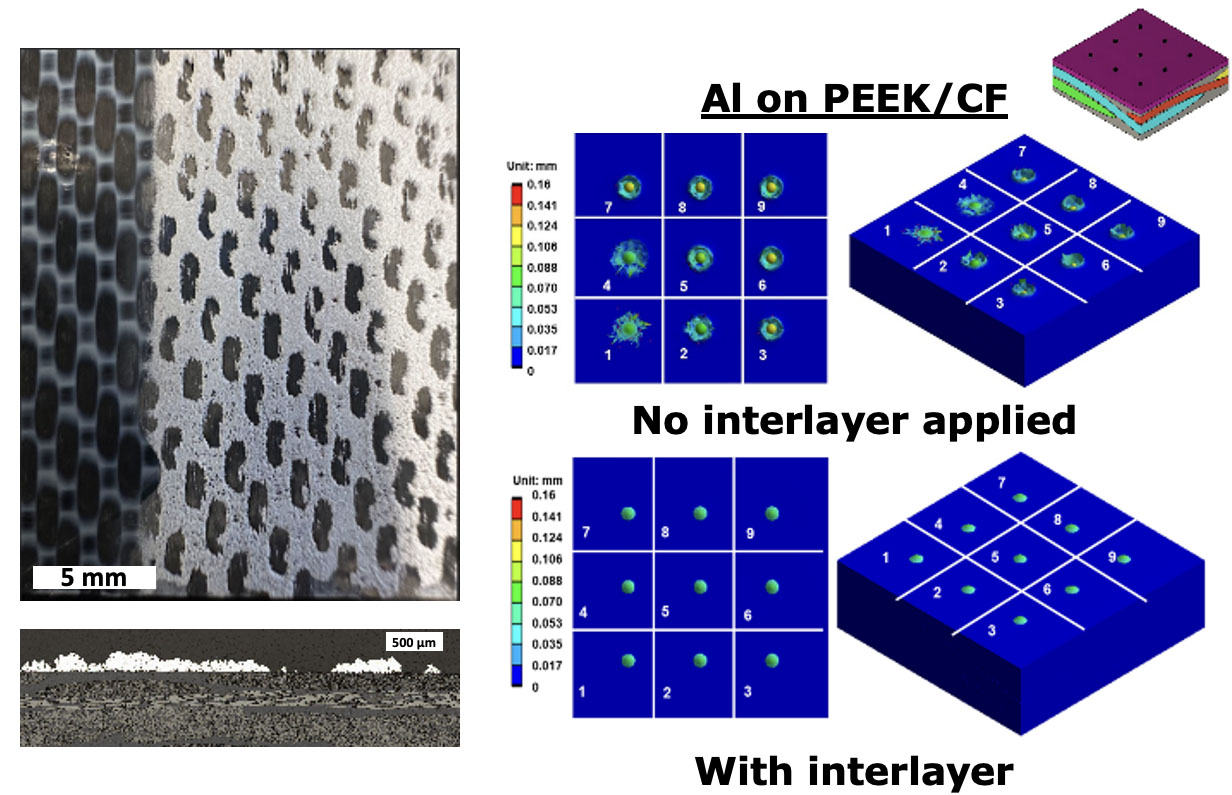

"Checkerboard Effect" and Mitigation
Modeling of Cold Spray Impact Physics
Impact Velocity/Temperature

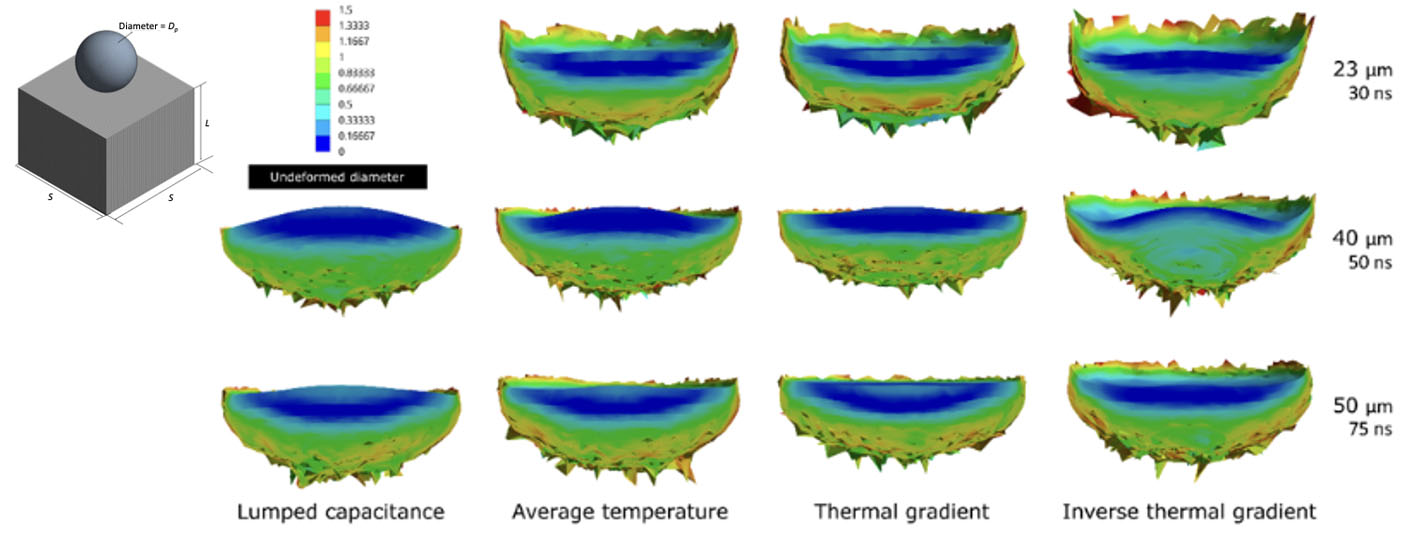

FEA of High Strain Rate Particle Impacts
Full-Scale Cold Spray Experiments
- Up to 1000 psi (~70bar) Nitrogen
- 800 ºC with 21 kW heater power
- Aluminum, Copper, Nickel, Steels
- Industrial-scale system with custom accessories
High Pressure – VRC Gen III Cold Spray System
